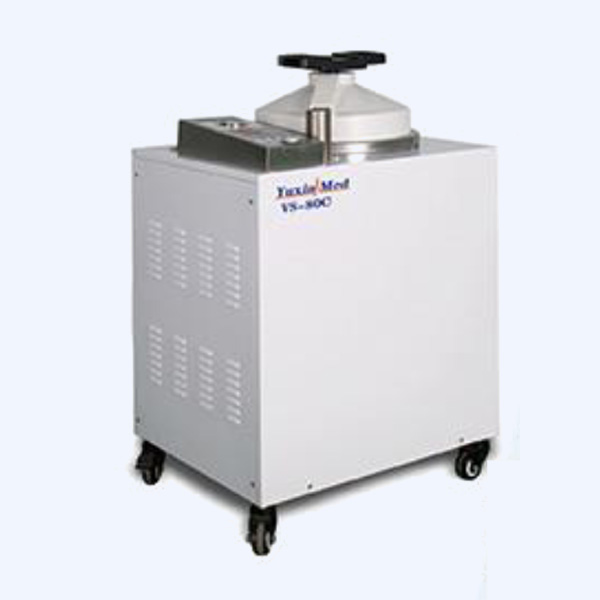

Fully automatic vertical high-pressure steam sterilizer
Vertical sterilizer is a small fully automatic high-temperature and high-pressure rapid sterilization equipment that uses pressure steam as the medium. Suitable for sterilization of fabrics, tools, rubber, liquids, glassware, culture media, waste and other items in biomedical research institutions at all levels such as biological laboratories.

Main technical parameters design pressure: 0.3MPA;
Design temperature: 150 ° C;
Maximum work pressure: 0.23MPA;
Maximum operating temperature: 136 ° C
Temperature display range: 0~200 ° C;
Pressure display range: 0-0.4MPA
Sterilization temperature selection: 105~136 ° C
Sterilization time range: 0-99 minutes;
Dissolving temperature: 40-100 ° C
Insulation temperature: 40~60 ° C
Material of cavity and door: SUS304 stainless steel, 2 stainless steel disinfection baskets, accessories

Safety device
Overtemperature automatic protection device: When the set temperature is exceeded, the system automatically cuts off the heating power supply and sounds an audible and visual alarm.
Anti dry burning protection device: When the low water level causes dry burning of the heating tube, the system automatically cuts off the heating power and sounds an audible and visual alarm.
Door safety interlock device: Only when the door is closed in place can the power be turned on to heat and generate steam; There is pressure inside the room, and the door cannot be opened.
Safety valve for automatic overpressure relief: When the pressure exceeds the opening pressure of the safety valve, the safety valve opens to relieve pressure.
Thermal insulation door cover: The door cover made of thermal insulation material is used to isolate the door of the sterilization door, which is both beautiful and can prevent the operator from getting burned.
Main performance and characteristics
Adopting microcomputer program automatic control technology, LED display, and touch sensitive buttons.
Automatic program control for the entire process of water injection, temperature rise, sterilization, steam exhaust, and drying.
There are multiple programs available for users to choose from, including high-temperature equipment, low-temperature equipment, sterilization and insulation of culture media, and dissolution and insulation of culture media.
Dynamic digital display during sterilization process, fault digital code alarm.
Equipped with positive pressure pulse exhaust function, it completely eliminates the cold air in the sterilization room and ensures the saturation of steam.
It has automatic control functions for fast and slow exhaust, avoiding liquid overflow during liquid sterilization.
It has a power-off automatic hold function, which automatically resumes running from the program breakpoint after reconnecting the power.
Built in water tank, internal circulation of soda water, no steam discharge, clean and dry environment.
Horizontal sliding quick opening door structure, self expanding seal, easy and safe operation.
